Linear LED Diffuser Manufacturer
- Snap-in, clip-on and lay-in profiles
- Lengths cut to your fixture dimension
- Co-extruded two-colour options
Product Overview
Linear LED Diffusers Overview
Specification
Typical specification
| Material | Polycarbonate (PC) / PMMA (acrylic), single-colour and two-colour |
|---|---|
| Light transmission | 0% to 97%, matched to the optical grade you specify |
| Profile weight | 10 g/m to 2,000 g/m |
| Colour | Clear, opal, frosted, custom colours including two-colour combinations |

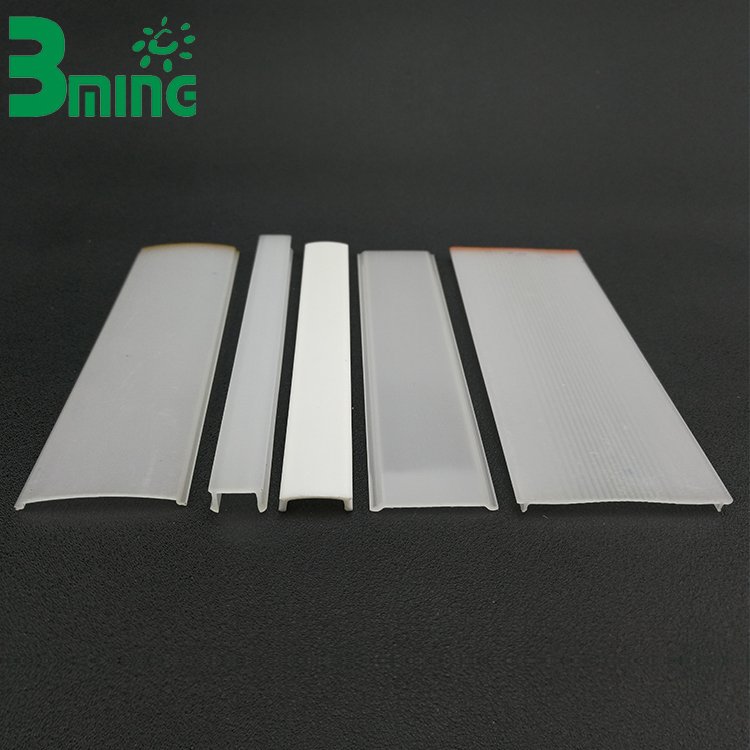

| Surface | Gloss, frosted, embossed, prismatic, co-extruded |
| Length | Cut to length; standard and custom lengths |
| Tooling | In-house die design and die manufacturing |
| Quality system | ISO 9001:2015 certified |
Profile & Optics
Profile design, optical characteristics and surface finish
Profile design

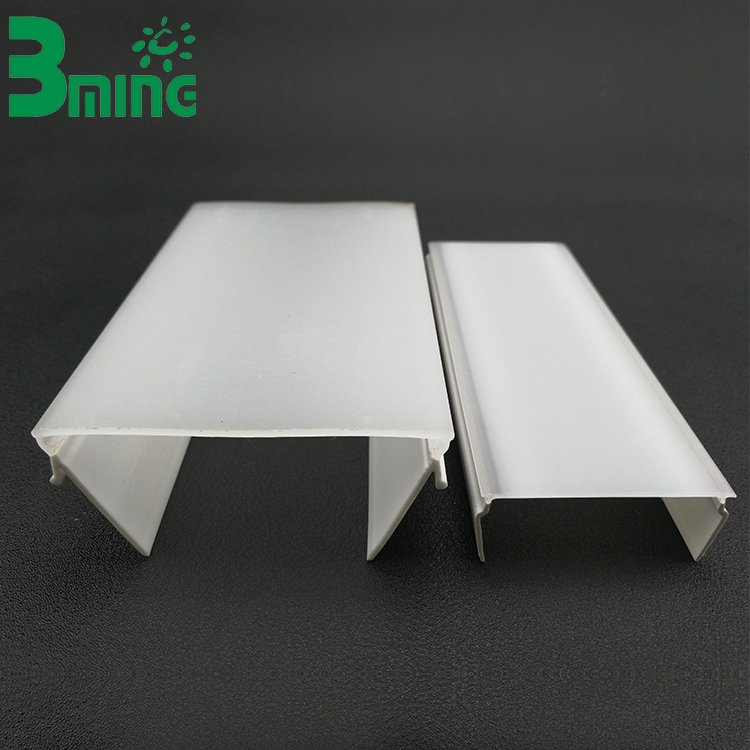

Snap-in, clip-on, lay-in, wide-span and curved cross-sections.
Optical characteristics
Even, hotspot-free output along the run. Transmission set to the efficacy target of the fixture.
Surface finish
Frosted and embossed faces for diffusion; gloss faces where clarity is needed.
Customization
What we can change for your project
Profile
New cross-sections developed from your drawing or from an existing sample.
Dimensions
Width, height, wall thickness and length set to your fixture geometry.
Surface
Gloss, frosted, embossed, prismatic or co-extruded surfaces.
Colour
Clear, opal, custom colours and two-colour combinations.
Applications
Typical applications
Linear lighting
Continuous suspended and surface-mounted runs.
Architectural lighting
Cove and reveal detailing.
Commercial lighting
Office and retail linear systems.
Industrial lighting
Linear high-bay and low-bay fixtures.
LED strip lighting
Rigid strip covers and housings.
Cabinet lighting
Shelf and under-cabinet profiles.
Signage lighting
Linear edge-lit signs.
Decorative lighting
Feature profiles in hospitality interiors.
Manufacturing Process
From drawing to packed profile
Drawing
2D drawing, 3D file, sketch or an existing sample.
Material
PC or PMMA, single-colour or two-colour, selected for optics, impact and UV stability.
Tooling
In-house die design and die manufacturing.
Extrusion
Trial run and parameter setting on a matched extrusion line.
Cutting
Cut to length, mitring, notching, drilling and CNC machining.
Inspection
Dimensional, appearance and optical checks against the approved sample.
Packaging
Protective film, sleeving, cartons and pallets to your requirement.
Quality Control
How the profile is checked
- Incoming resin inspection and batch traceability
- First-piece approval against the approved sample or drawing
- In-process dimensional checks on profile width, height and wall thickness
- Light transmission and haze measurement on optical grades
- Appearance inspection under standard lighting conditions
- Final random inspection before packing and palletising
Need a diffuser built to your drawing?
Send us your drawing, sketch or existing sample. Our optical extrusion engineers will come back with material, tooling and price.
FAQ
Frequently Asked Questions
What lengths can you supply?
Can the diffuser be co-extruded with an opaque section?
How do you avoid hotspots along the run?
